Geared Motor (Optimax)

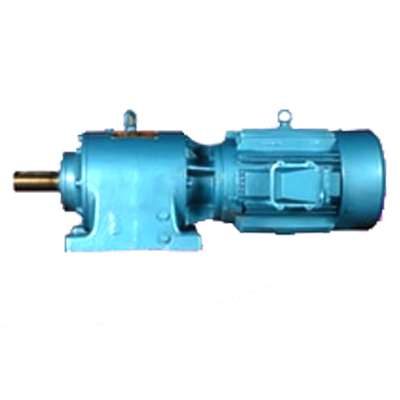

OPTIMAX GEARED MOTOR Units is a combination of OPTIMAX COAXIAL SHAFT GEARBOX without Input Shaft assembly but fitted with Electric Motor appropriate to requirement either in coaxial or off-set position with one or two Gearbox Casings and therefore provide a compact Power Pack Units without any other rotating member such as Coupling. These units are manufactured with output power rating from 0.12 to 40 HP with favourable graduated speeds from 0.16 to 780 RPM. These units are available in all usual Design of OPTIMAX Co-Axial Shaft models.

Types of Gear Unit

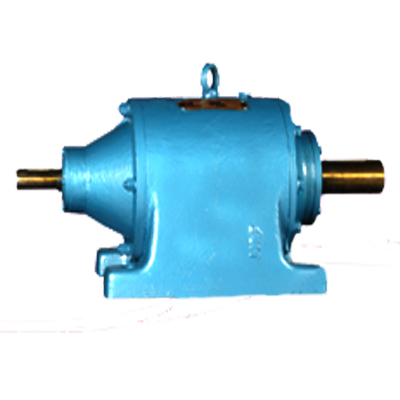

R: Foot type with coaxial or off-set output shaft & with one or two gear casings
RF: Flanged type with coaxial or off-set output shaft & with one or two gear casings
R..F: Foot-cum-flanged type with coaxial or off-set output shaft with one or two gear casings. Dimensions on request
RUF: Flange type with extended hub and shaft end with coaxial or off-set output shaft with one or two gear casings

Poles	Types of Motor
DC	Three Phase with Squirrel Cage face mounting B14 construction
DF	Three phase with Squirrel Cage Flange mounting motor
2	Synchronous speed 3000 RPM
4	Synchronous speed 1500 RPM
6	Synchronous speed 1000 RPM
8	Synchronous speed 750 RPM

Note: For power, size and rating please refer catalogue.
