Verso ‘S” type Worm Gear reduction units and Worm gear reduction Geared motor units (Universal mounting type gearboxes)

• Size: 1 1/8” – 3 1⁄2” Centres
• Ratio: 5/1 – 70/1

Note: For Power rating please refer our catalogue.

Metric Single Reduction Worm Gear Reducers (SM Series)

Types

• Under driven: SUM
• Over Driven: SOM
• Vertical Output Up / Down: SVM

• Size: 3” to 24” Centres
• Ratio: 5/1 to 70/1

Note: For Power rating please refer our catalogue.

Metric Double Reduction Worm Gear Reducers (SM Series)

Types

• Under driven: SUDM
• Over Driven: SODM
• Vertical Output: SVDM

• Ratio: 75 /1 to 4900 / 1

Note: For Size & Power rating please refer our catalogue.

Heavy Duty Worm Gearboxes ( Classic )

• Size: 10” to 24” Centres
• Ratio: 5 /1 to 70 / 1

Note: For Power rating please refer our catalogue.

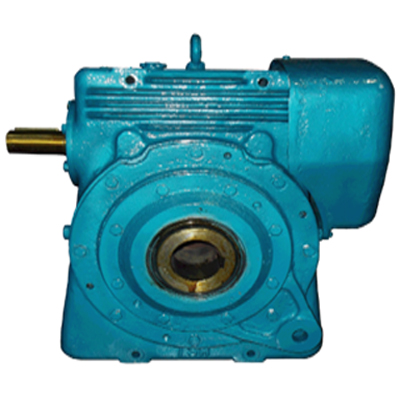

HOLLOW SHAFT GEARBOX (SHAFT MOUNTED UNIT)

• Size: 3” to 14” Centres
• Ratio: 5/1 to 70/1
• Rating: Same as SM series

Features

• Shaft mounted unit wit provision of Torque Arm
• If torque arm is not used Gearboxes can be supplied With flange on output line

Note: Dimensional Drawing - On Request.

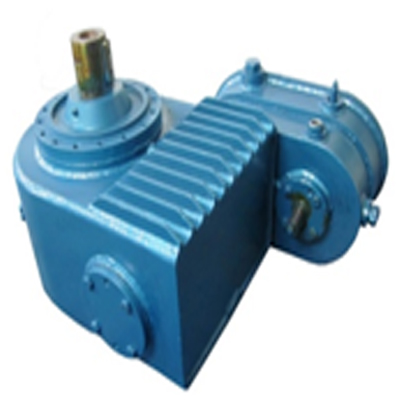

HELI- WORM GEARBOX

• Size: 3/40, 3/50,3.5/60,4.5/70,4.5/80,5/90,5/100,6/120 & 7/140
• Ratio: 87.5 /1 to 245/1

Features

• 1st reduction Helical unit is combined with standard SUM / SOM series

Note: Rating & Dimensional Drawing - On Request.

HEAVY DUTY STIRR AND AGITATOR UNIT

• Size: 4” to 14” CTS
• Ratio: 5/1 to 70/1

Features

• These units are capable of taking higher bending moment because of higher Output Shaft diameter.

Note: Rating & Dimensional Drawing - On Request.

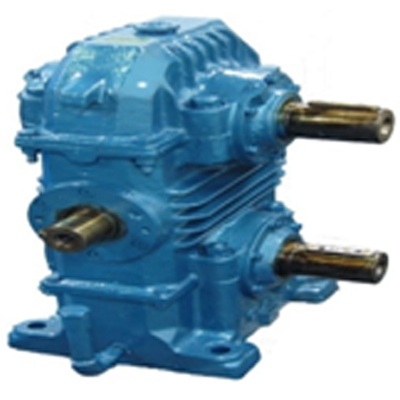

TWIN OUTPUT GEARBOX

• Size: ( 4” + 4” ) to ( 17” + 17” ) CTS
• Ratio: 5/1 to 70/1
• Rating: Same as ‘ SM ‘ series

Features

• These units are required for Tube Mill applications

Note: Dimensional Drawing - On Request.

HELIWORM HOLLOW OUTPUT SHAFT GEARBOX

• Size: 3/40, 3/50,3.5/60,4.5/70,4.5/80,5/90,5/100,6/120 & 7/140
• Ratio: 87.5 /1 to 245/1

Features

• 1st reduction Helical unit is mounted on SM ( Shaft Mounted) unit with provision of torque arm, if torque arm not used then gearboxes can be supplied with flange on output line.

Note: Rating & Dimensional Drawing - On Request.

DOUBLE REDUCTION WORM GEARBOX WITH HOLLOW OUTPUT

• Size: 1.7/30 to 7/140
• Ratio: 75/1 to 4900/1
• Rating: Same as Double Reduction metric Worm Gear Units

Features

• 1st reduction SUDM Gearbox is mounted on Shaft mounted unit (Hollow Output Shaft).
